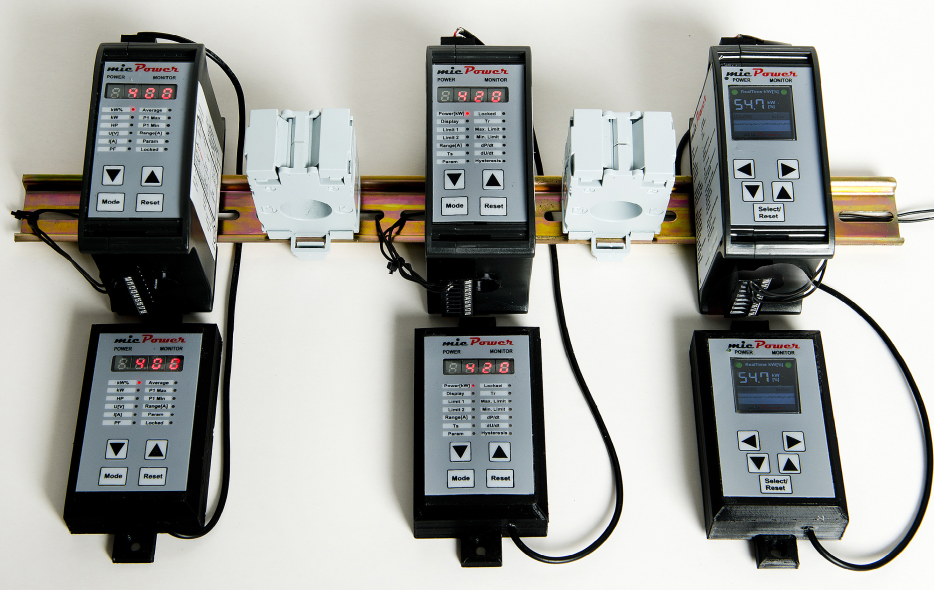

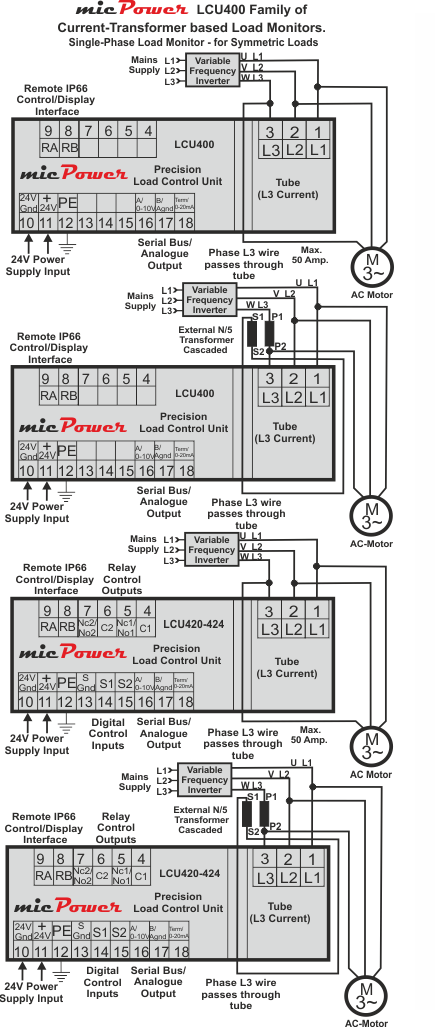

1. The micPower LCU400 family of low cost, Current-Transformer based, Single-Phase Load Controllers and Power Transducers for symmetric loads.
Family features:
♦ Single-Phase, "traditional low-cost CT Design", Load Controller for symmetric loads (AC motors).
♦ True Digital Design. High Measurement Bandwidth 0 - 30 kHz.
♦ Measures Power before or after a Variable Frequency Inverter.
♦ Measures Inductive Load only.
♦ Displays kW[%], kW, HP, RMS Voltage, RMS Current and Power Factor.
♦ 2 Independant Limit Detectors.
♦ 0,5 Amp - 50 Amp internal transducer. Up to 1000 Amp. with external N/5 transducer.
♦ 24V DC Power Supply, electrically isolated.
♦ Two Analog Outputs 0 - 20mA, 4 - 20mA or 4 - 24mA and 0 - 10V, electrically isolated.
♦ Modbus RTU available on custom demand. Serial RS485 Bus interface replaces analog output circuit.
♦ Two Wire Interface to LCU8xx Remote Control Unit. LCU8xx is powered from LCU400. Supply and communication over 2 wires. Electrically Isolated and short circuit protected display interface.
♦ 4-digit Seven Segment Display and 14 LED User Interface. Graphic version under development.
♦ Dimension: 79 x 115 x 45 mm
♦ Multiple applications covered with the same design (Pump Monitoring, Shockload Monitoring, Dual Speed Motor monitoring etc. etc.
♦ Prices start at: $199 (the LCU8xx IP66 Remote Control is $99).
Family members:
LCU400: Pure measurement transducer with two Analog Outputs. Modbus RTU available on demand.
LCU400 User Manual.
LCU420: Pump Monitor. Max. Limit (Overload or Pump-Running indication). Min. Limit (Pump Dry-Running).
LCU420 User Manual.
LCU421: Shock-Load Monitor. dP/dt.
LCU421 User Manual.
LCU422: Dual Max. Limit Monitor.
LCU422 User Manual.
LCU423: Dual-Speed Motor Monitor.
LCU423 User Manual.
LCU424: Load Control with Motor Reversal.
LCU424 User Manual.
LCU450G: Graphic Version of LCU400 family.
Application is selectable from above.
Real Time Clock for time stamping of events.
Data-Logger functions.
Available end of 4Q.
Link to datasheet coming here.
More applications to follow on custom demand. Please contact us, if you have a variable speed application.
Pricelist: Pricelist in PDF format

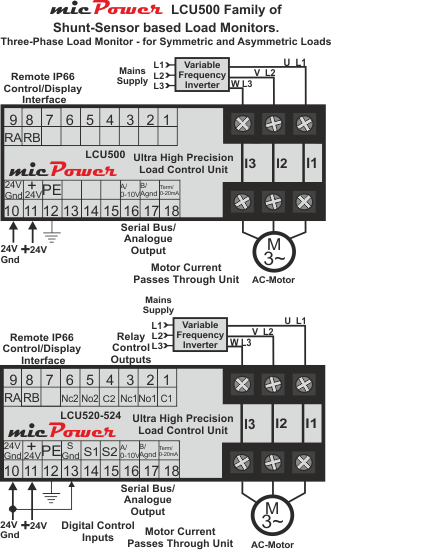

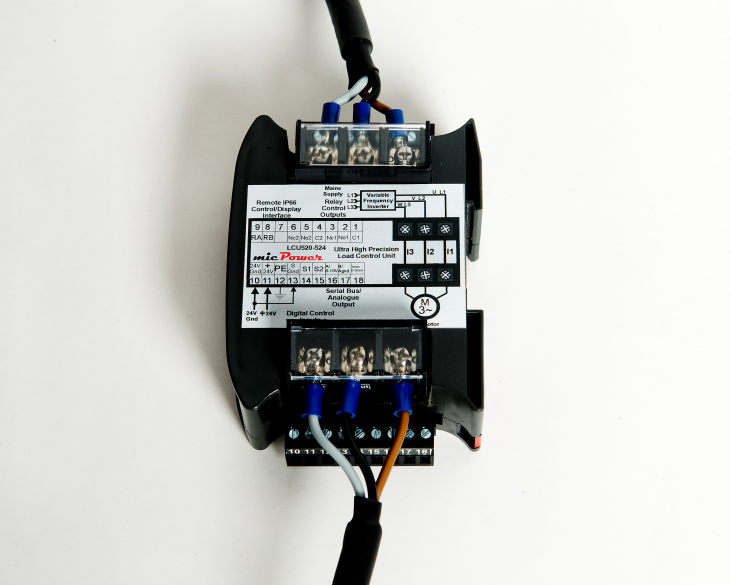

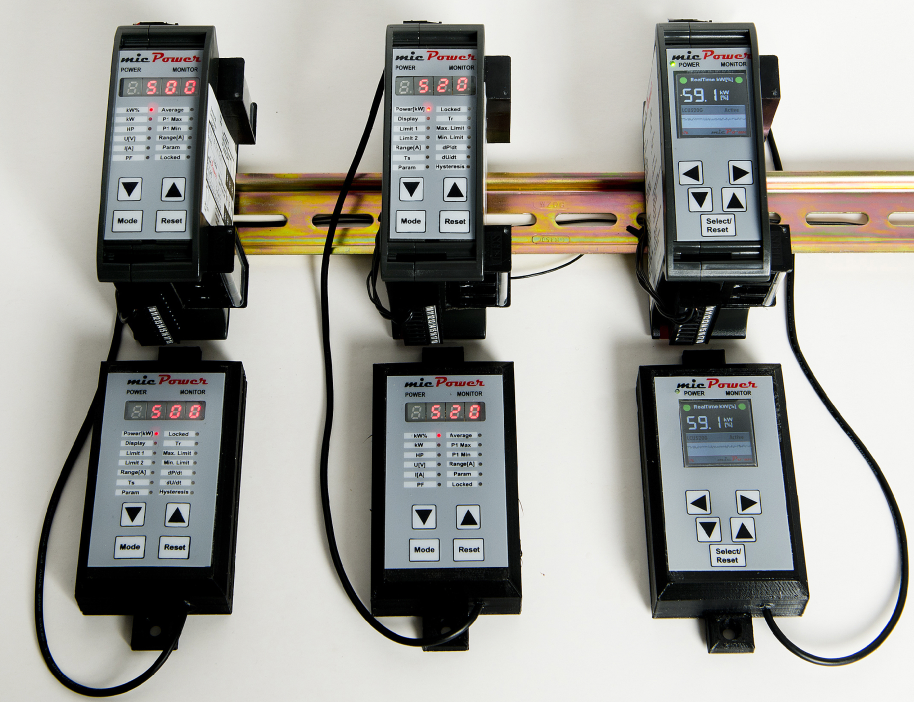

2. The micPower LCU500 family of, Shunt-Sensor based, Three-Phase Load Controllers and Power Transducers for both symmetric and asymmetric Loads.
Family features:
♦ Three-Phase Load Controller for asymmetric loads.
♦ True Digital Design. High Measurement Bandwidth 0 - 30 kHz.
♦ Measures Power before or after a Variable Frequency Inverter.
♦ Measures Inductive Load only.
♦ Displays kW[%], kW, HP, RMS Voltage, RMS Current and Power Factor.
♦ 2 Independant Limit Detectors.
♦ 0,5 Amp - 20 Amp internal transducer. (32 Amp. unit could get introduced).
♦ 24V DC Power Supply, electrically isolated.
♦ Two Analog Outputs 0 - 20mA, 4 - 20mA or 4 - 24mA and 0 - 10V, electrically isolated.
♦ Modbus RTU available on custom demand. Serial RS485 Bus interface replaces analog output circuit.
♦ Two Wire Interface to LCU8xx Remote Control Unit. LCU8xx is powered from LCU400. Supply and communication over 2 wires. Electrically Isolated and short circuit protected display interface.
♦ 4-digit Seven Segment Display and 14 LED User Interface. Graphic version under development.
♦ Dimension: 79 x 115 x 45 mm
♦ Multiple applications covered with the same design (Pump Monitoring, Shockload Monitoring, Dual Speed Motor monitoring etc. etc.
♦ Prices start at: TBD.
Family members:
LCU500: Pure measurement transducer with two Analog Outputs. Modbus RTU available on demand.
LCU500 User Manual.
LCU520: Pump Monitor. Max. Limit (Overload or Pump-Running indication). Min. Limit (Pump Dry-Running).
LCU520 User Manual.
LCU521: Shock-Load Monitor. dP/dt.
LCU521 User Manual.
LCU522: Dual Max. Limit Monitor.
LCU522 User Manual.
LCU523: Dual-Speed Motor Monitor.
LCU523 User Manual.
LCU524: Load Control with Motor Reversal.
LCU524 User Manual.
LCU550G: Graphic Version of LCU500 family.
Application is selectable from above.
Real Time Clock for time stamping of events.
Data-Logger functions.
Available end of 4Q.
Link to datasheet coming here.
More applications to follow on custom demand. Please contact us, if you have a variable speed application.
Pricelist: Pricelist in PDF format

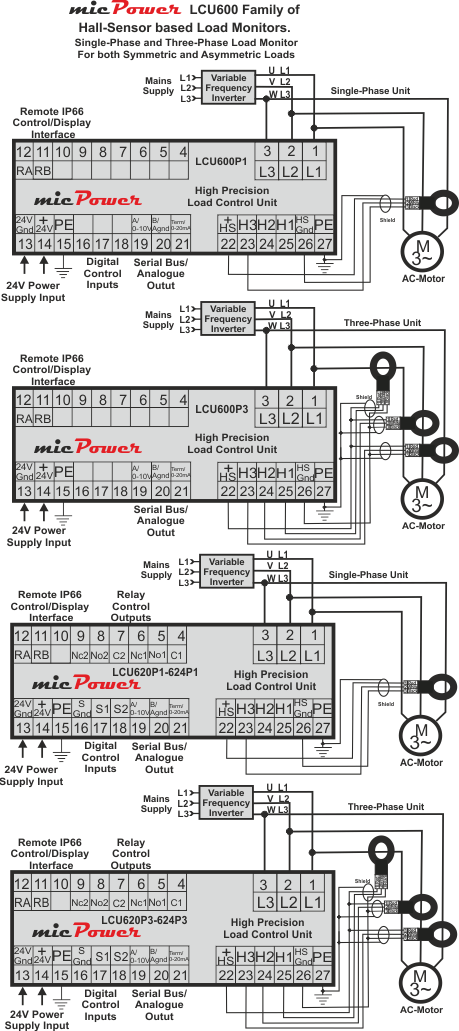

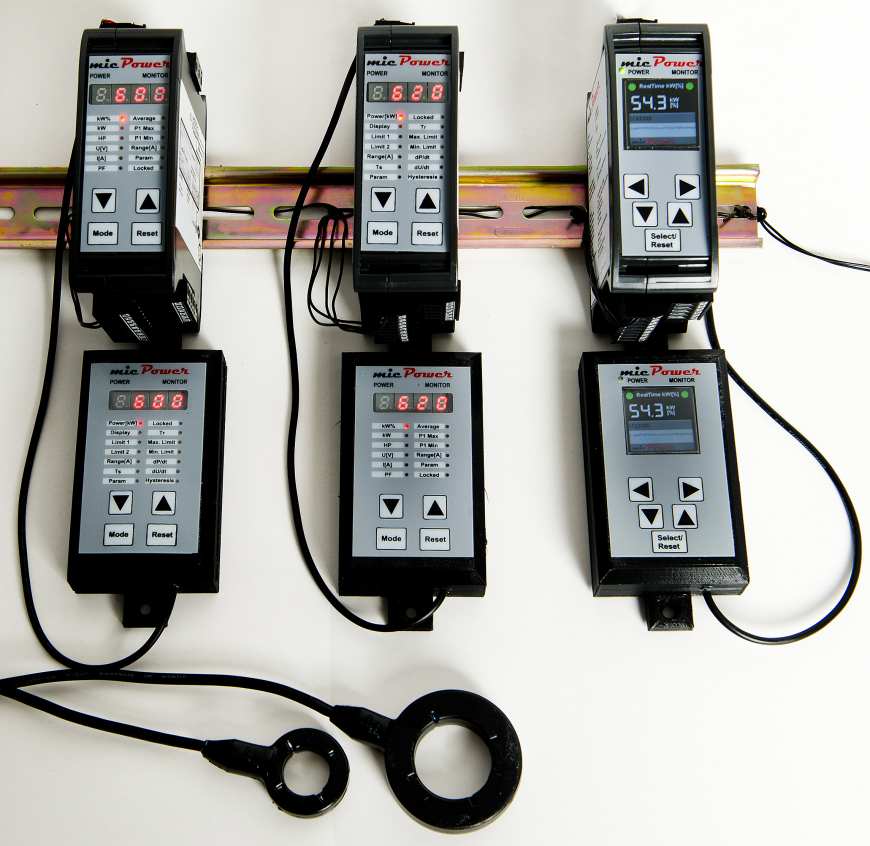

3. The micPower LCU600 family of, Hall-Sensor based, Single-Phase and Three-Phase Load Controllers and Power Transducers for both symmetric and asymmetric Loads.
Family features:
♦ Single and Three-Phase Load Controller for symmetric or asymmetric loads.
♦ True Digital Design. High Measurement Bandwidth 0 - 30 kHz.
♦ Measures Power before or after a Variable Frequency Inverter.
♦ Measures Inductive Load only.
♦ Displays kW[%], kW, HP, RMS Voltage, RMS Current and Power Factor.
♦ 2 Independant Limit Detectors.
♦ Four available Hall-Sensor types 50, 100, 200, 500 or 1000 Amp.
♦ 24V DC Power Supply, electrically isolated.
♦ Two Analog Outputs 0 - 20mA, 4 - 20mA or 4 - 24mA and 0 - 10V, electrically isolated.
♦ Modbus RTU available on custom demand. Serial RS485 Bus interface replaces analog output circuit.
♦ Two Wire Interface to LCU8xx Remote Control Unit. LCU8xx is powered from LCU400. Supply and communication over 2 wires. Electrically Isolated and short circuit protected display interface.
♦ 4-digit Seven Segment Display and 14 LED User Interface. Graphic version under development.
♦ Dimension: 79 x 115 x 35 mm
♦ Multiple applications covered with the same design (Pump Monitoring, Shockload Monitoring, Dual Speed Motor monitoring etc. etc.
♦ Prices start at: TBD.
Family members:
LCU600: Pure measurement transducer with two Analog Outputs. Modbus RTU available on demand.
LCU600 User Manual.
LCU620: Pump Monitor. Max. Limit (Overload or Pump-Running indication). Min. Limit (Pump Dry-Running).
LCU620 User Manual.
LCU621: Shock-Load Monitor. dP/dt.
LCU621 User Manual.
LCU622: Dual Max. Limit Monitor.
LCU622 User Manual.
LCU623: Dual-Speed Motor Monitor.
LCU623 User Manual.
LCU624: Load Control with Motor Reversal.
LCU624 User Manual.
LCU650G: Graphic Version of LCU600 family.
Application is selectable from above.
Real Time Clock for time stamping of events.
Data-Logger functions.
Available end of 4Q.
Link to datasheet coming here.
More applications to follow on custom demand. Please contact us, if you have a variable speed application.
Pricelist: Pricelist in PDF format

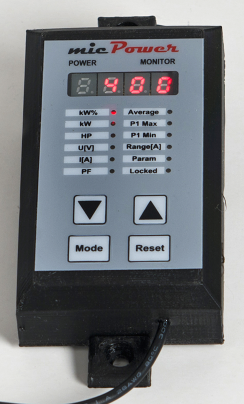

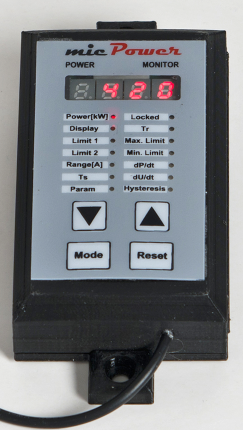

4. The micPower LCU800 IP66 remote control unit.
LCU800A:
♦ Remote-Control for the LCU400, LCU500 and the LCU600 measurement transducers.
♦ The Remote-Control is powered from the LCU.
♦ Simple two-wire interface for power and communication.
♦ Electrically isolated and short-circuit proof interface.
♦ IP66 for harsh environments.
LCU800B:
♦ Remote-Control for the LCU42x, LCU52x and the LCU62x measurement transducers.
♦ The Remote-Control is powered from the LCU.
♦ Simple two-wire interface for power and communication.
♦ Electrically isolated and short-circuit proof interface.
♦ IP66 for harsh environments.
LCU802:

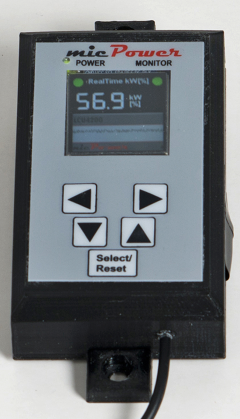

♦ Graphic Remote-Control for the LCU4xxG, LCU5xxG and the LCU6xxG measurement transducers.
♦ The Remote-Control is powered from the LCU.
♦ Simple two-wire interface for power and communication.
♦ Electrically isolated and short-circuit proof interface.
♦ IP66 for harsh environments.
5. Future micPower Development Directions.
Internet of things, IoT, is the future of the development. This makes it possible to view and control the Load Monitor from within a Browser like Google Chrome or Microsoft Edge and many others. This makes it possible to control the Load Monitor from a PC, laptop, tablet or phone. The embedded WEB-server may get updated by ftp transfer.
The physical Ethernet Interface used by IoT communication may also get used to implement Industrial Communication Protocols like MODBUS TCP, PROFINET and others.
Variable speed motor monitoring is another area for future development. The micPower Load Controllers above are all able to measure the frequency of the AC-motor current. When a motor is controlled from a Variable Frequency Inverter the Current in the motor usually becomes sinusoidal, with a frequency proportional to the speed of the motor. The actual motor speed depends on the PWM modulated voltage waveform applied to the Motor and the number of poles in the motor. So it will be possible to add variable speed monitoring without even adding a motor speed sensor.
